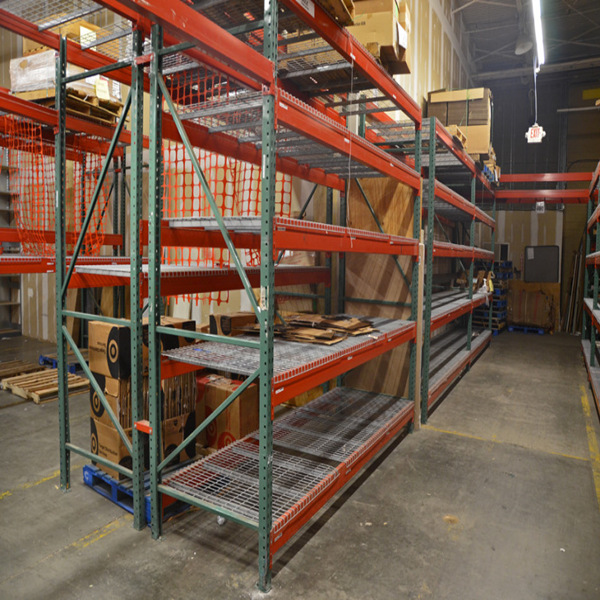

Customize selective Warehouse Heavy Duty Steel Storage Pallet Rack
Customize selective Warehouse Heavy Duty Steel Storage Pallet Rack
are an effective method of storing pallets one deep from the aisle
while utilizing the vertical space.
Customize selective Warehouse Heavy Duty Steel Storage Pallet Rack
is the main components of every warehouse system. Single selective
rack is pallet rack in which every pallet is accessible from an
aisle. This is the most common of all rack designs and assures that
any pallet can be accessed at any time.
Customize selective Warehouse Heavy Duty Steel Storage Pallet Rack
can be used as a stand-alone for pallet storage or as part of
complex engineered systems for Carton Flow or Pallet Flow modules.
Numerous gauges and post sizes can accommodate any capacity
requirement.
Heavy shelves,also known as beam type shelf, in a variety of
storage shelves system is the most common one kind of shelves full
assembly, in the form of column piece+beam structure, structure
concise and effective. The diversity of most simple and effective
storage shelves, tie-in forklift work, use convenient tray access
mode, suitable for storage of various kinds of goods. The shelves
of high turnover is widely used by more and more enterprises.
Heavy-duty shelves are widely used in manufacturing, warehousing
and electricity providers, third-party logistics and distribution
centers, etc, applies to both many varieties of small quantities of
goods, but also for few varieties large quantities of goods
| Benefits Using Selective Pallet Racking |
| 1 | Selective pallet racking allows 100% access to every pallet
location at any time. |
| 2 | When correctly designed there are few limitations to the type of
goods that can be stored in selective pallet racking. |
| 3 | Selective rack is designed for your individual needs. It is
configurable to suit your storage requirements, your warehouse
parameters and your materials handling equipment. |
| 4 | Selective racking requires a relatively low capital investment, yet
provides the highest flexibility. |
Characteristic
· 100% accessibility to individual pallets
· Easy picking lower levels
· Good storage density
· Easily installed and repositioned
· No special lift trucks required
| Performance of Racking System | Bulk Storage | Selective Pallet Rack |
| Selectivity of individual pallets | 40% | 100% |
| Use of floor space | 80% | 50% |
| Utilization of pallet posting | 70% | 98% |
| Speed of access and throughput | 80% | 80% |
| Stock rotation (FIFO) | 40% | 60% |
| Use of building height | 30% | 80% |
| Efficient Bottom Level Case Picker | No | Yes |
| Ease of relocation | 100% | 100% |
| System adjustability | 100% | 100% |
| Specialist handling equipment | No | No |
Because of the size and weight of pallets, important safety factors
have to be considered at all times:
1 Pay attention to any loose components in the pallet rack system,
and take the time to report any damage in the pallet rac k frame;
such frame damage could cause the pallets to fall
2 It is the owner’s legal responsibility to communicate this
important warning to all who are around storage racks:
“Never climb on racks during or after assembly. Storage racks are
not designed to be stepped on or climbed on. A slip or fall may
result in serious injury.”It is especially important to have highly visible warning signs if
the pallet rack system is used in retail environments, such as
wholesale centers, where the public is present.
3 Use only quality pallets that are not damaged. To save money, or
perhaps from neglectful management, some warehouses use pallets
until they become faulty and dangerous. Regular inspection of
pallets for broken or fractured planks or stringers, protruding
nails, and missing support blocks is essential. Damaged pallets can
cause loading and unloading problems; for example, loose stringers
can get hung up on the pallet racks, which can cause loads to fall
from high positions. Also, faulty pallets can cause obstruction
problems in flow systems by jamming certain pallet rack designs.
4 Always ensure that the proper motorized equipment is being used
for the application.
5 Do not obstruct the end of aisles by staging pallets in these
areas. Doing so can cause severe and potentially fatal injuries and
accidents.
6 Never overload or exceed the recommended load specifications for
a racking system. Overloading may cause a catastrophic failure of
your storage rack system.
7 Rack audits (safety checks) should be performed on a regular
basis by a qualified inspector familiar with RMI design and safety
standards to make sure all aspects of system are up to 100%
operationally safety.
