Professional Warehouse Storage Racking System Pallet Shuttle Radio
Shuttle
Professional Warehouse Storage Racking System Pallet Shuttle Radio
Shuttle is already been a important element for a company supply
chain management, which can make more value for the enterprise.
In addition, integrated processing of automatic warehouse system
will effect produce efficiency, cost of supply chain and service
improvement directly.
When we take high density shuttle racking system, we can reduce
operating time, increase storage capacity and improve production
efficiency greatly.
Huichen has more than a decade of experience in the field of
racking design, production and installation,especially we take a
lead in Radio Shuttle Racking as we desighed the shuttle by ouself
so there is a good price advantage.
General introduction of Radio Shuttle Racking Solutions Warehouse
Radio shuttle racking system is made by shelves, shuttle cart and
handling equipment which is composed by forklift, shuttle cart
(also pallet mole) and laneway stacker with rail. It offer us a
totally new high dense storage system.

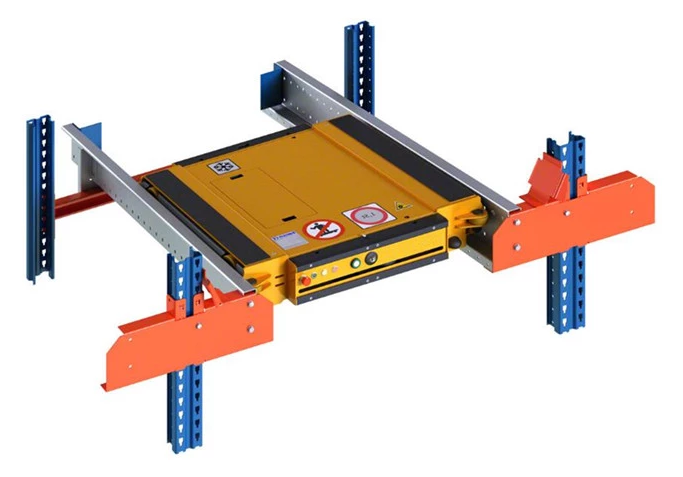

Shuttle cart is a kind of rail car powered by lithium batteries,
controlled by wireless operator or by connecting to the Internet.
It is capable to take the pallet from one end to another.Featured
with safety, efficiency, economic, environment friendly etc., Radio
Shuttle Racking cover the market of high dense storage rapidly,
make good profit for customers.
| High Efficiency | Instead by smart cart to carry goods, there is no need for forklift
to enter the lane, which improve the handling capacity and
efficiency greatly. |
| Safety | Shuttle cart worked on the rail, so that there is no need for the
forklift to enter the lane which improve the safety of processing. |
| Economic | Storage capacity improved in same space while the cost of storage
equipment reduced obviously. |
| Operability | Wireless operation made the shuttle cart working by the order
sending by the control center or the forklift driver. |
| Universality | Shuttle Racking can make the best use of space by using pallet in
different specifications at the same time and adjusting the pallet
accordingly. |
Specification of the radio shuttle cart:
| Specification | Rate loading | Depth | Width |
| HCCS-12-12-15 | 1500kg | 1200mm | 1200mm |
| HCCS-11-11-10 | 1000kg | 1100mm | 1100mm |
| HCCS-14-12-15 | 1500kg | 1400mm | 1200mm |
| HCCS-12-10-10 | 1000kg | 1300mm | 1000mm |
| HCCS-13-11-15 | 1500kg | 1300mm | 1100mm |
Here in after data sheet is based on the size of pallet 1200mm
| Serial | Tech data | Size(mm) |
| A | Pallet width | 1200 |
| B | Upright inside size | 1360 |
| C | Shuttle cart rail | 1010 |
| D | Upright size | 90/100/110/120 |
| E | Bottom height | 420 |
| F | Height | based on the fact |
| G | Min height between cargo and pallet | 375 |
Product feature and application of the FIFO Automated Shuttle Racking Solutions Warehouse:
Radio Shuttle shelving is particularly well-suited to:
※ Ensuring efficient retrieval times, as the FLT travel distance is
reduced.
※ Either LIFO or FIFOstorage.
※ Warehouses with limited human resources, as the shuttle does a
big portion of the work.
※ Storing of a large number of pallets.
Application:
Food, beverage, chemical, tobacco and other single species, large
quantities and relatively single item product.
Date critical cargo such as fruit and food can also be stored.
Benefits
※ Increase productivity
※ Minimize damage
※ High density storage
※ Maintain accessibility
Production Of Radio Shuttle Rack
Main Products
Why Choose HUICHEN?
1. 17 years experience on manufacturing warehouse racking;
2. All types of racking comply with ISO9001, CE etc;
3. Have successfully done thousands of racking project;
4. Factory direct sale price, no cost for middle distributor.
Really important to choose a reliable warehouse racking supplier!!!
