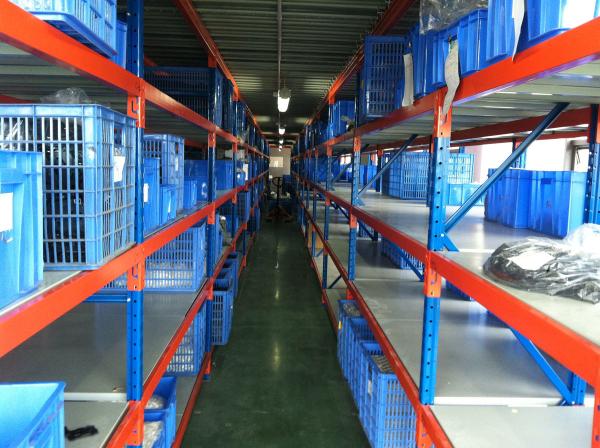

Pharmaceuticals Industry Multilayer Heavy Duty Warehouse Storage
shelf racking Made In Qingdao
Product introduction of shelf racking
Shelf racking are usually manual access method, assembly structure,
the average spacing between the adjustable, the goods are often set
or not very heavy unpacked items (ie, manual access), the shelf
height is usually 2.5m The following, otherwise the manual is
difficult to involve (such as supplemented by a high car can be set
at 3m or so). Unit shelf span (length) should not be too long, the
unit shelf depth (width) should not be too deep, according to its
unit shelf load per layer can be divided into light, medium and
heavy shelf racking.
Product specification of the shelf rack
| Racking specs(LXW: mm) | Shelf layers(pcs) |
| 2000X600X2400 | 6 |
| 2000X600X2000 | 5 |
| 1800X600X2400 | 6 |
| 1800X600X2000 | 5 |
| 2000X500X2000 | 5 |
| 1800X500X2000 | 5 |
Product feature and application of shelf racking
Can be combined with light, medium or heavy duty storage racking
for the storage of a wide variety of non-palletised goods to allow
for picking items lower down and bulk storage above.
※ 100% Selectivity of a location for each product.
※ Vertical space is used for increased product storage.
※ May be engineered to meet any load or configuration requirement.
※ Can also be used with steel or timber decks to store
non-palletised loads or for picking.
Application :
Food, beverage, chemical, tobacco and other single species, large
quantities and relatively single item product.

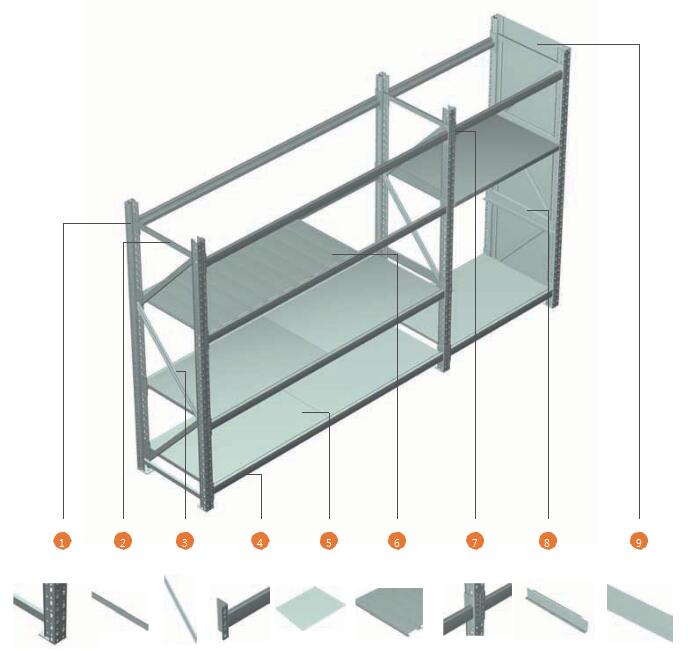

Production details of the shelf rack
Upright structure
Beam structure
| No. | Name | No. | Name | No. | Name |
| 1 | Upright | 4 | Beam | 7 | shim |
| 2 | Horizontal bracing | 5 | Shelf | 8 | Horizontal bar |
| 3 | Diagonal bracing | 6 | Block shelf | 9 | Side panel |
Production procedure of the shelf racking
Deliver,shipping and serving of shelf rack
