Automated Retrieval Stainless Steel Storage Pallet Rack / Pallet
Shuttle Runner
Stored processes and solutions have become a strategic element of
supply chain management in the enterprise, creating new value for
the enterprise.
In addition, the integration of automation systems directly affects
the productivity of the organization, reducing costs in the supply
chain and improving service Reduced labor hours, increased storage
capacity, and significantly increased productivity when using dense
shuttle shelving systems.
Huichen Storage Equipment has professionally experienced in the
design and manufacturing different rack system and installation for
more over 15 years, especially in the shuttle rack system.
Shuttle rack system consists of rack, shuttle cart and handling
equipment, handling equipment usually is forklift, shuttle mother
army, or stacker crane,and it provide a new high-density storage
system.

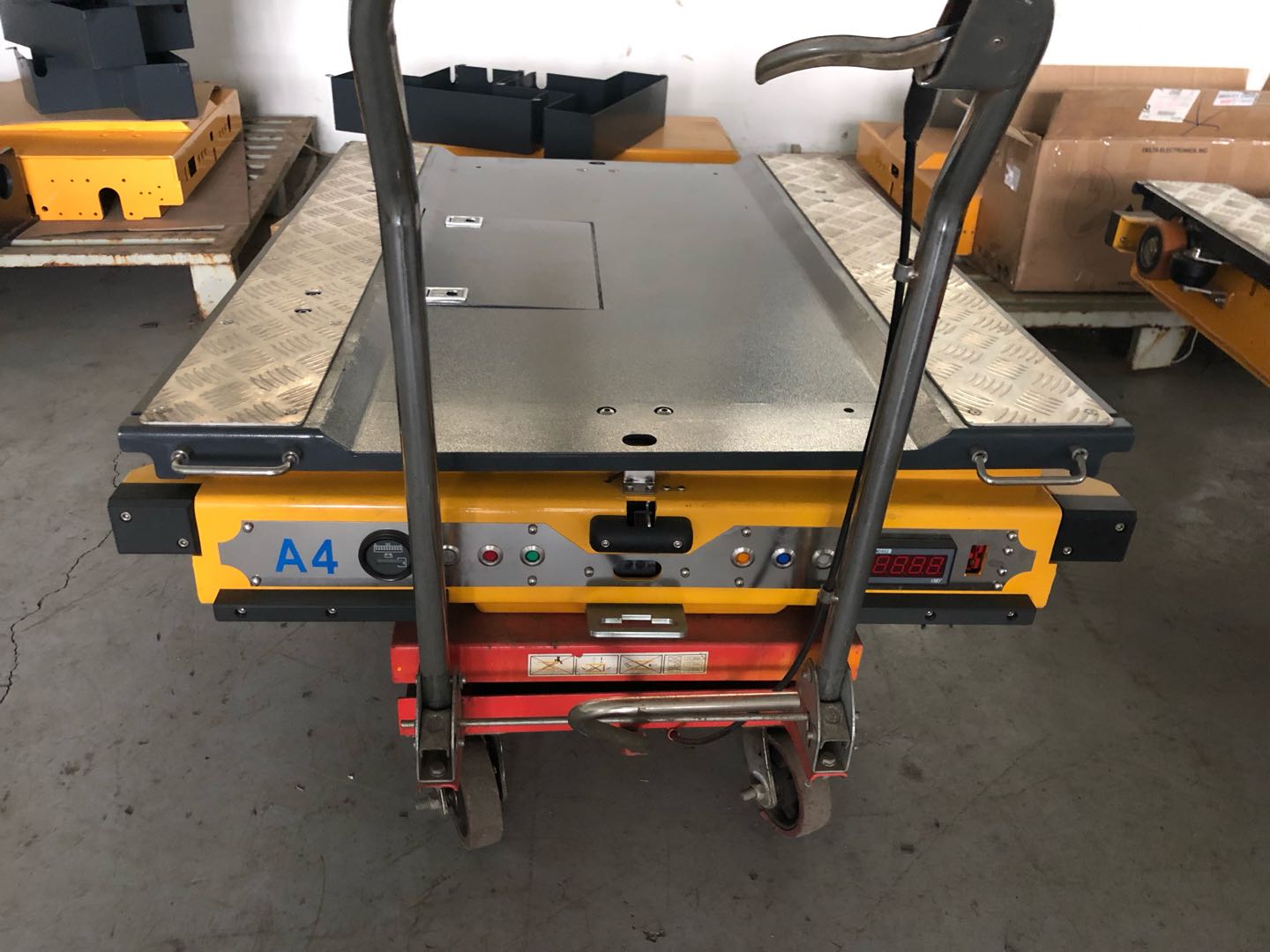

Shuttle cart is a batterypowered orbit cart operated by a wireless
remote control or directly connected to a computer and capable of
transporting trays from one end to the other end.
Shuttle rack system quickly occupy the market of high-density
storage area with the features of safety, high efficiency, economy
and environmental protection, and earn profits for the households.
Shuttle cart system:
| System | Function |
| SIEMENS Control | Effective control of distance and initial speed |
| Deceleration photoelectric | According to the shuttle cart running speed appropriate to adjust
the deceleration |
| Brake photoelectric | According to the shuttle car running speed appropriate to adjust
the stop speed |
| Photoelectric switch | Will slow down after meet the barrier in the front |
There can be multiple shuttles in a warehouse, and they can work at
the same time without interfering with each other because each
remote control only controls the designated shuttle.
Pallet Shuttle Rack System General Features
| Standard Function | Selective function |
| Convert face A/B | Quantitative outgoing function |
| Single storage function | Tally function |
| Continuous storage function | Inventory function |
| Single out of storage function | Rescue function (2 sets) |
| Continuous out of storage function | |
| Alarm function | |
| Seeking cart function | |
Specification of the radio shuttle
| Specs | Loading | Width | Depth |
| HCCS--12-10-15 | 1500kg | 1200mm | 1000mm |
| HCCS--12-12-15 | 1500kg | 1200mm | 1200mm |
| HCCS--11-11-15 | 1500kg | 1100mm | 1100mm |
| HCCS--13-11-15 | 1500kg | 1300mm | 1100mm |
| HCCS--14-12-15 | 1500kg | 1400mm | 1200mm |
Normal temp warehouse & cold warehouse info
| Function | Normal temp | Cold warehouse |
| Load speed | 0.6-0.8m/s | 20% lower than normal temp storage |
| No-load speed | 0.6-1m/s | 20% lower than normal temp storage |
| Working temp | +5℃－＋45℃ | -20℃~-5 ℃ |
| Horizontal power | 700W | 700W |
| Vertical power | 375W | 375W |
| Power supply | Battery | Insulation battery |
Required information from customers for quick quote:
1, the AUTOCAD drawing or draft drawing of warehouse or racking.
2, the size of the warehous, length, height, and width.
3, how many layers of the racking?
4, your pallet size.
5, max weight of pallet with cargo on.
6, special color requirement.
Production Of Radio Shuttle Rack
Main Products
Why Choose HUICHEN?
1. 17 years experience on manufacturing warehouse racking;
2. All types of racking comply with ISO9001, CE etc;
3. Have successfully done thousands of racking project;
4. Factory direct sale price, no cost for middle distributor.
Really important to choose a reliable warehouse racking supplier!!!
