Professional Warehouse Vertical Racking Systems ASRS With High
Quality Certificate
Huichen technologies used in AS/RS systems and processes enable
users to dramatically improve the efficiency of storage,
handling.preparation and dispatch of all types of goods.Automated
warehouses and material handling.Eyda's advantage over their
competitors, with respect to improved productivity, range of
products and superior customer care. The automated applications are
becoming more important than the traditional setups in warehouses
and supply chain operations.
1. Customized design of the steel pallet makes it suitable for
every walk of life.
2. Special design of Steel Pallet Legs to prevent them from
damaging the roller surface in operation
3. Optimized Structure of the Steel Pallet to save materials used
to the great degree.
1. AS/RS Warehouse with Computer Control System, Consists of
Assembly Rack or Welding Rack automatic stereo warehouse consists
of assembly rack or welding rack
2. It is a sate ,fast and very convenience system with 100%
accessibility.The crane can go up to more than 30M .The exact
height and length can determine by capacity.
3. Guarantees the fullest space utilization, handling mechanization
and storage management modernization

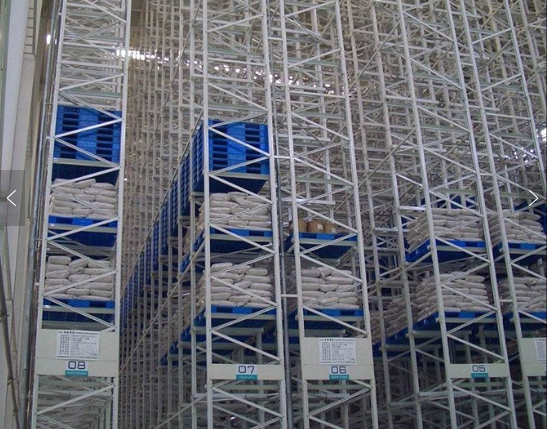

ASRS warehouse rack mainly consists of following parts:
| Racking | Structural feature: AS/RS System are usually equipped with pallet
racking and drive-in racking, both of which are composite
structure. Steel panels and wooden panels are available for loading
with good capacity. Conveyors will do the loading and unloading job
under the instruction from the central computer. AS/RS System is
mainly used in the food, tobacco, electronic, mechanical and
armament industry. |

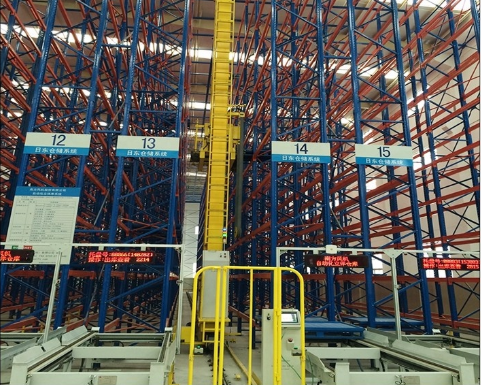

| Stacker | Structural feature: Double upright structure, steady and reliable,
vector frequency conversion drive and encoder position control,
mechanical and electronic safety devices to ensure safe using of
the system; All the way tracing technology by information
transferring; Electric components are imported from abroad;
Touching screen interface for easy operation; Making manual,
semiautomatic, automatic and linkage control come true; Used in
many situations by combining with other logistics equipment. |
| Conveying system | Structural feature: Conveying system is usually equipped in the
front or back of warehouse for conveying goods here and there,
bridging the procedures done by forklifts and stackers by using
rolling conveyor or chain conveyor and combining with lifts,
rotating devices and other equipments. |
| Controlling system | Structural feature: Communicating with WMS and ECS through OPC
agreement, PROFIBUS bus network, set up by Siemens S7-300
controller can operate all conveyors offline, doing conveying of
goods automatically.
Please refer to the attached drawing for details of conveying
system |
| WMS System | Hardwares of WMS System: Star network structure, network sever, RF
server, computers for management and monitor, RF base station and
RF terminal for in/out warehouse of goods.
|
Working Principle
| Inventory | The goods are put on the front end of the storage tunnels by the
forklift truck, through radio remote control shuttles, can carry
pallets of goods in track operation |
| PICK | radio remote control shuttle carries the pallet from the farthest
end of the storage tunnel to the nearest end of the racking system,
put down the pallet from the racking system by the forklift truck |
| Shuttle | The shuttle can be place in different storage tunnel by the
forklift, several storage tunnels can share a shuttle. The quantity
of shuttle is depend on the depth of the storage tunnel, total of
goods, shipping quantity, shipment frequency and other factors |
Application
| 1 | Goods of large quantity and few kinds: food, beverage, chemical,
tobacco and other single kinds of items and of large quantity, etc. |
| 2 | Refrigeratory exercise: reduce low temperature working time,
improve work efficiency and operation safety. |
| 3 | Deadline management: articles on strict requirements batch, require
FIFO operations management warehouse |
| 4 | Increase storage capacity: the limited storage space, need to
maximize the use of space of warehouse. |
Benefits
1. Dramatic improvements in operator efficiency and storage
capacity .
2. Reduction of work-in-progress inventory .
3. Improvements in quality and Just-in-Time performance .
4. Provides make-to-order capability in addition to
make-to-inventory production .
5. Real-time inventory control and instantaneous reporting
functionality .
Advantages
1. High density storage style, high warehouse utilization rate
2. High work efficiency, greatly reduce operating time
3. Operating flexibility, the access of goods can be FIFO, can also
be FILO
4. And good safety, reduce damage, improve safety productivity
Beam
Please provide information for quick quotation
1. Pallet Size (Length*Width*Loading Height in mm)
2. Layout or Dimension (Length*Width*Net Height in mm) of your
warehouse
3. Rack Size (Length*Width*Depth in mm) if you are available or we
shall design for you
4. How many bays and levels if available
5. Loading Capacity(kg) of each level or each pallet
Production Of ASRS Rack
Main Products
Why Choose HUICHEN?
1. 17 years experience on manufacturing warehouse racking;
2. All types of racking comply with ISO9001, CE etc;
3. Have successfully done thousands of racking project;
4. Factory direct sale price, no cost for middle distributor.
Really important to choose a reliable warehouse racking supplier!!!
