Automated Warehouse Racking System Radio Drive-in Shuttle Rack System with Pallet Runner

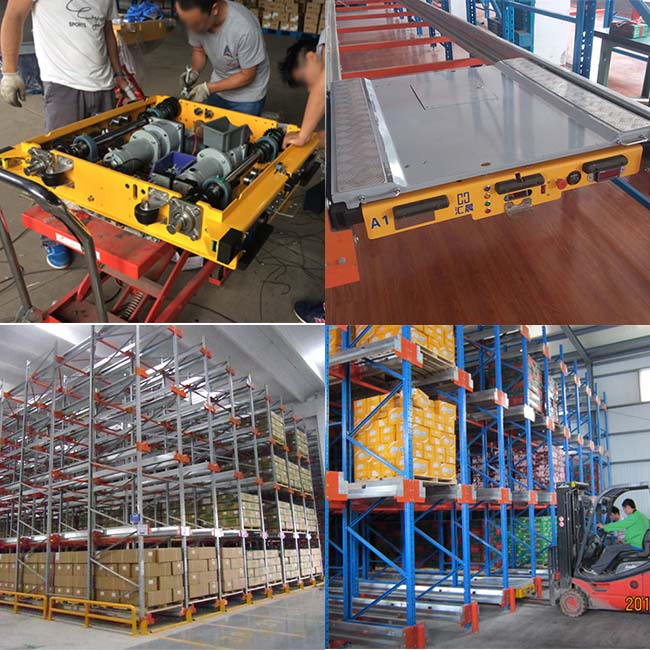

Pallet runner racking, is a storage and retrieval system. The pallet shuttle system consists in a specific rack and a mobile shuttle. This shuttle is a self-powered device that runs on rails in the storage lanes for the loading and unloading of pallets. It is transported to its location at the front or the back of a lane (in case of open back side) by a standard forklift. Once at its home position, the shuttle performs the loading and unloading tasks without any human intervention.

These tasks are instructed by the fork lift driver using a remote control. Once the tasks are completed the shuttle returns to its home position and is then ready to be transported to a new location for a new task.

Characteristics
- Pallets can be stored to unlimited depths
- Increased storage within the same or smaller square footage
- Increase operator productivity to 40 or more pallet moves /hour
- 1 cart can support up to 1,000 pallet positions
- A different SKU can be stored in each lane
- Reduced operating costs, Environmentally friendly

Radio Shuttle Cart is a fully programmable deep lane storage and retrieval system used to transport pallets within a racking structure for maximum storage and throughput of bulk stored items. Radio shuttle rack system allows for more pallets to be stored in a given area when compared to normal static rack .It also minimizes damage to the rack because the forklift does not have to travel into the racking, as is the case with drive-in rack. Accessibility is increased because all the levels can be accessed at any time. In a drive-in rack system the bottom level must be cleared first in order to be able to access the higher levels.

· Goods can be stored in the warehouses with highest density and low cost.

· Storage Style: FIFO or FILO, Optional tunnel picking.

· As each pallet only needs to be positioned at the beginning of the deep lane storage it increases efficiency within operations.

· Better safety and anti-seismic performance than drive in racks.

· Technical Specifications.

· Nominal Loading capacity : 500 KGS~1500KGS

· Running Speed: Max.1.1M/S

· Operation Methods: To be operated manually or vehicle-mounted or Radio remote control Temperature in the freezer:-30°C

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Qingdao City, Shandong Province, China. You can fly to Qingdao airport directly.

3. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235. Other steel is also available to clients’ requirements.

4. Q: What is the term of payment?
A: As general, 30% T/T down payment and balance before shipping.

5. Q: What is delivery times
A: It depends on the order quantity and racking types. As general, within 25 days, for ordinary order quantity of Pallet Racking .

6. Q: Which port will be used as loading port?
A: Qingdao port, the closest port to us, is strongly recommended as loading port.

7. What is the term of payment?

A:1) T/T payment.

2) LC

8. May I know the status of my order?
A:Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.

9. Are samples available?
A:Yes, we can send some sections of samples for your reference by express.
Please feel free to contact us now, if you have any inquiry or question

Our History

Qingdao Huichen Logistics Technology Co.,Ltd has focused on modern storage system equipment for over 20 years in China. as one of largest professional warehouse storage equipment manufacturer in north of China,which is focusing on the warehouse solution,manufacturing and installation.

Our Factory

The company has 2 automatic punching lines, 19 rack-making production lines,2 large shot blasting machines,4 flame plating lines, Annual production capacity of 10 million tons.

Our Product

Our main products cover :

1. all kinds of industrial racking: radio shuttle racking, selective racking,automated warehouse,

2. pallet,storage box;

3. section bar;

4. table trolley;

5. materials handling series equipment and so on.

We supply racking and material handling equipment all over the globe to a wide range of companies worldwide, ranging from large multinational organizations to small individual companies.

Product Application

Warehouse storage racking for Industry use are widely used in the following industry, such as:

--- Food,

--- Chemicals,

--- Auto,

--- Pharmaceutical

--- Electric products,etc...
